High-precision, powerful, and profitable
Our range of tube bending machines accommodating all requirements from 0.5 to 60 mm, with robot bending systems for everything from highly complex bending tasks to conventional tube forming. This high-end range of machines provides an economical way to fulfill even the strictest of demands.
Machines
Machine comparison Stabilizer bar bending machines
- Value added by superior and precise technology particularly for high-strength stabilizer bars
- Versatile application possibilities and high degree of automation
- High production output and enormous process reliability
- Minimized tooling times due to branch-specific sets of tools (plug & play)
Please select tube diameter [mm]
RST 28
from 20
to 28 mm
| Tube diameter | 20 - 28 mm |
| Wire tensile strength 700 N/mm² | 28.0 x 4.8 mm |
| Tensile strength 1200 N/mm² | 24.0 x 3.4 mm |
| Wire tensile strength 1400 N/mm² | 22.0 x 4.0 mm |
| Max. dimensions of solid material | |
| Wire tensile strength 700 N/mm² | 25.0 mm |
| Tensile strength 1200 N/mm² | 21.0 mm |
| Wire tensile strength 1400 N/mm² | 20.0 mm |
RBV 60 ST
from 20
to 35 mm
| Tube diameter | 20 - 35 mm |
| Standard lengths, recommended | 3,500 mm |
| Bending moment | 8 kNm |
| Boost pressure | 50 kN |
| Clamping force | 140 kN |
RBV 60 HD
from 20
to 43 mm (Vollmaterial max. 43,0 mm)
| Tube diameter | 20 - 43 mm (solid material: max. 43.0 mm) |
| Standard lengths, recommended | 3,500 mm |
| Bending moment | 25 kNm |
| Boost pressure | 50 kN |
| Clamping force | 300 kN |

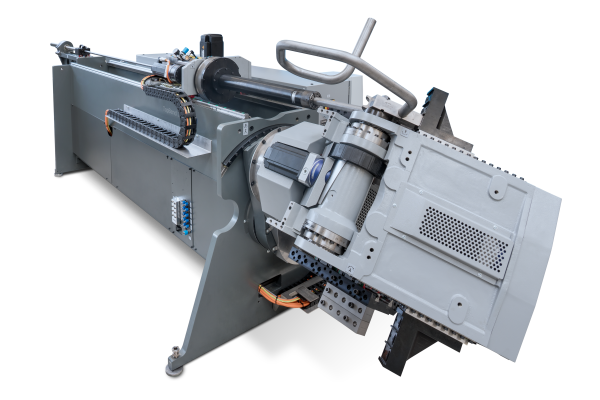

TopBend 35
TopBend Tube bending machines - The market-oriented gateway to high-end WAFIOS bending technology
The WAFIOS TopBend provides the manufacturing industry with high-end tube bending machines that are particularly suited as entry-level machines for the bending of tubes. The TopBend is able to bend in two directions. If only one bending direction is required for the workpiece, one bending side can optionally be omitted. This variant of machine is available under the name EcoBend. Innovative developments, like the extension of the work range or the swiveling mandrel bending device as well as the modular, retrofittable machine body enable a project-specific investment while maintaining full flexibility for many other applications. If required, the machine can be retrofitted with many options for other applications. Even a second bending direction can be subsequently added.
